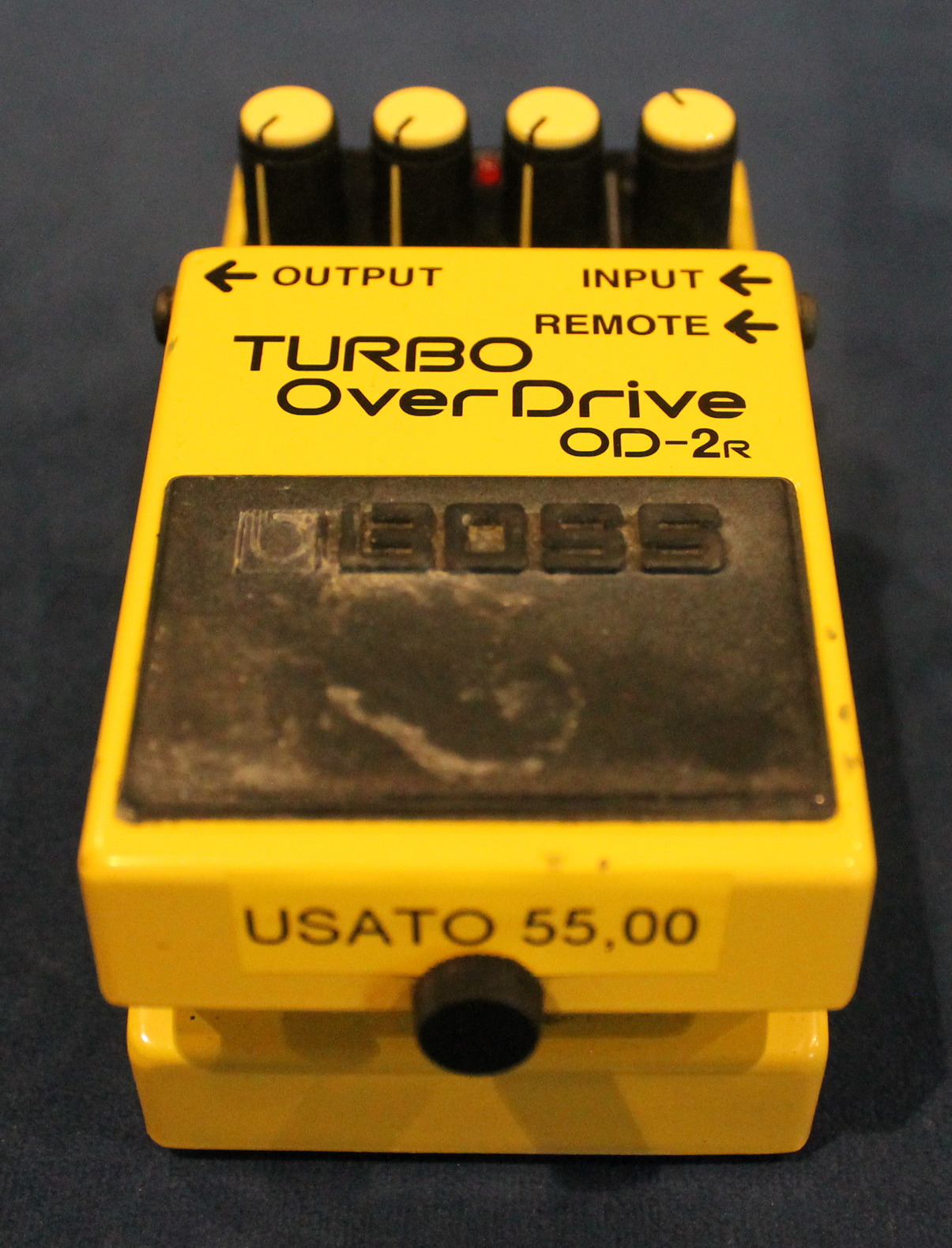

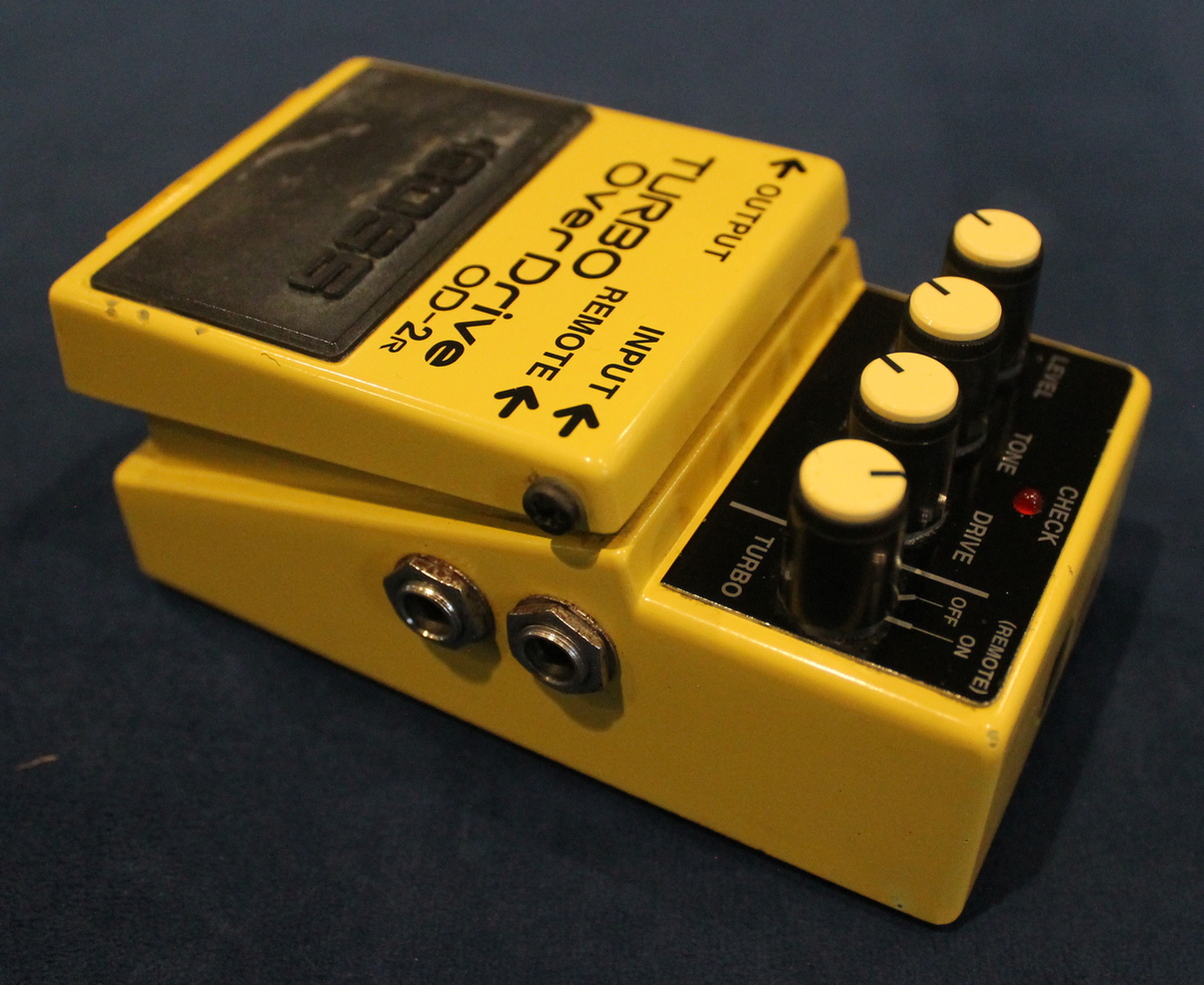

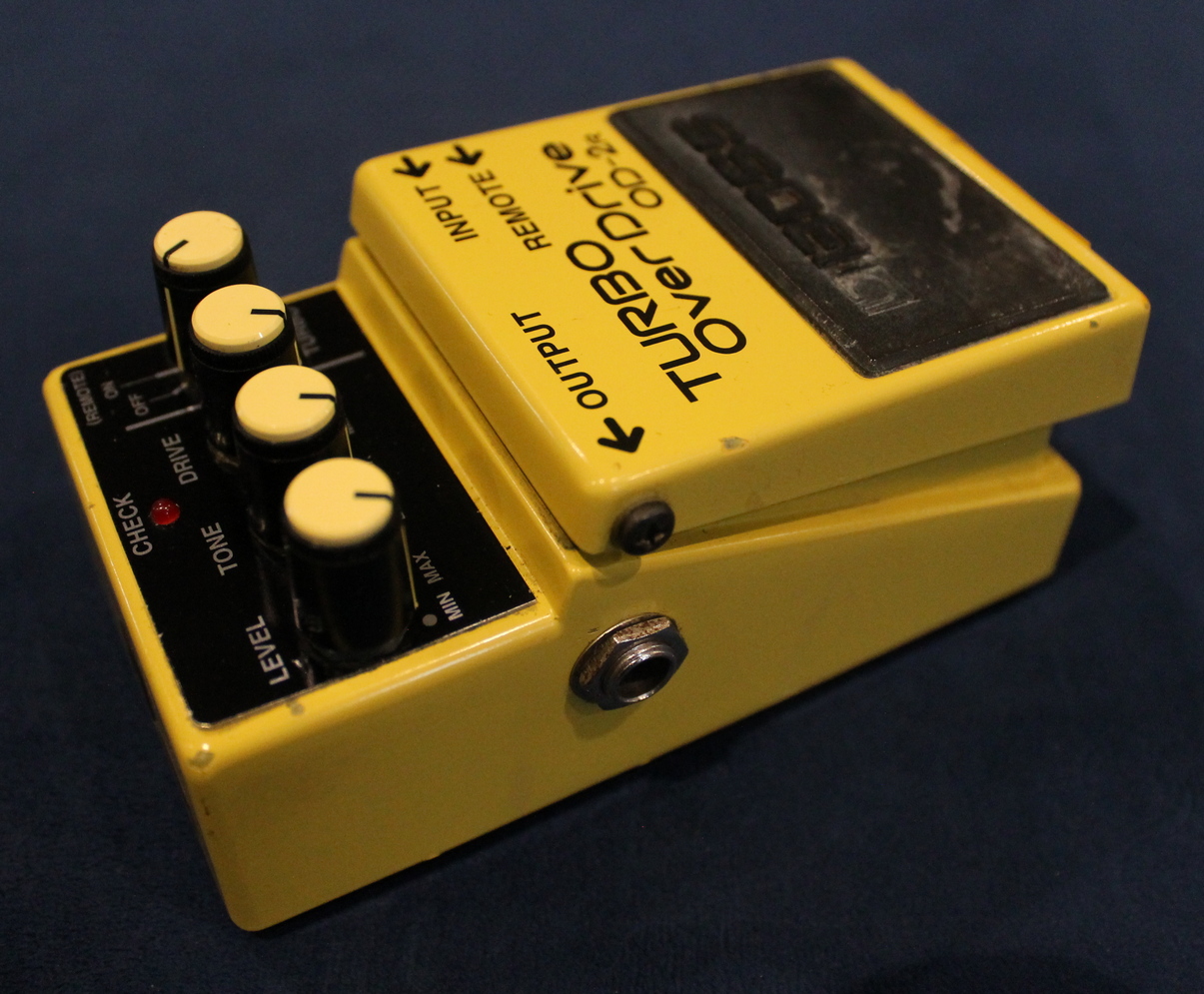

Boss OD-2R USATO cod. 112123

The OD-2R has the same internal circuitry as the OD-2. Tests has shown that the R model has higher gain than the original but sounds very similar. The OD-2R’s only new feature is the remote connector. It accepts and optional a latching footswitch, like the FS-5L, and can be used to switch the pedal’s turbo mode on or off. Specifications Controls: Level, Tone, Drive, 2-way Turbo Switch Connectors: Input, Output, Remote, AC Adaptor Current Draw: 16 mA (DC 9V) Weight: 440 g (1 lb.) Nominal Input Level: -20dBm Input Impedance: 1Mohm Nominal Output Level: -20dBm Output Impedance: 1kohm Residual Noise Level: -110 dBm(lHF-A, Typ.) Recommended AC Adaptor: PSA Series
