The Affordably Priced Multi-Effect Processor for the Experienced Guitarist. Direct descendant of G-Force G-Major can benefit from all of TC Electronic’s experience and dedication to high-quality guitar processors. Following in the footsteps of G-Force, G-Major puts technology beyond your expectations at your disposal, at an amazing price.
With G-Major you can simultaneously use up to 8 different effects and an always-on tuner, with the ability to control numerous parameters in real time, via MIDI or from the Pedal input. Changing presets is fast and smooth, and allows for delay “spillover.” A Myriad of Effects Being exclusively an effects processor, the use of G-Major proves perfect in combination with a preamp.
The effects are organized into Blocks, each of which contains various types of effects to choose from. For example, the Delay Block includes: Stereo Delay, PingPong Delay, Tap Delay, and Dynamic Delay. There are over 25 different algorithms: bring out the best in each!
Features:
Digital Inputs and Outputs
RCA Phono Connectors (S/PDIF)
Formats S/PDIF (24 bit), EIAJ CP-340, IEC 958
Output Dither HPF/TPDF dither 24/20/16/8 bits
Sample Rates 44.1 kHz, 48 kHz
Processing Delay 0.1 ms @ 48 kHz
Frequency Response DIO DC to 23.9 kHz ± 0.01 dB @ 48 kHz
Analog Inputs
Connectors 1/4″ phone jack, balanced
Impedance, Bal / Unbal 21 kOhm / 13 kOhm
Max. Input Level +24 dBu
Min. Input Level for 0 dBFS 0 dBu
Sensitivity @ 12 dB headroom: -12 dBu to +12 dBu
A to D Conversion 24 bit, 128 x oversampling bitstream
A to D Delay 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz
Dynamic Range 100 dB typ, 20 Hz – 20 kHz
THD typ. < 92 dB (0.0025 %) @ 1 kHz
Frequency Response +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk <-95 dB, 20 Hz to 20 kHz
Analog Outputs
Connectors 1/4″ phone jack, balanced
Impedance Balanced / Unbalanced 40 Ohm
Max. Output Level +20 dBu (balanced)
Balanced Output Ranges: 20/14/8/2 dBu
D to A Conversion 24 bit, 128 x oversampling bitstream
D to A Delay 0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz
Dynamic Range 104 dB typ, 20 Hz to 20 kHz
THD typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
Frequency Response +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk <-100 dB, 20 Hz to 20 kHz
EMC
Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety
Certified to IEC 65, EN 60065, UL6500 and CSA E65
Enviroment
Operating Temperature 32° F to 122° F (0° C to 50° C)
Storage Temperature -22° F to 167° F (-30° C to 70° C)
Humidity Max. 90 % non-condensing

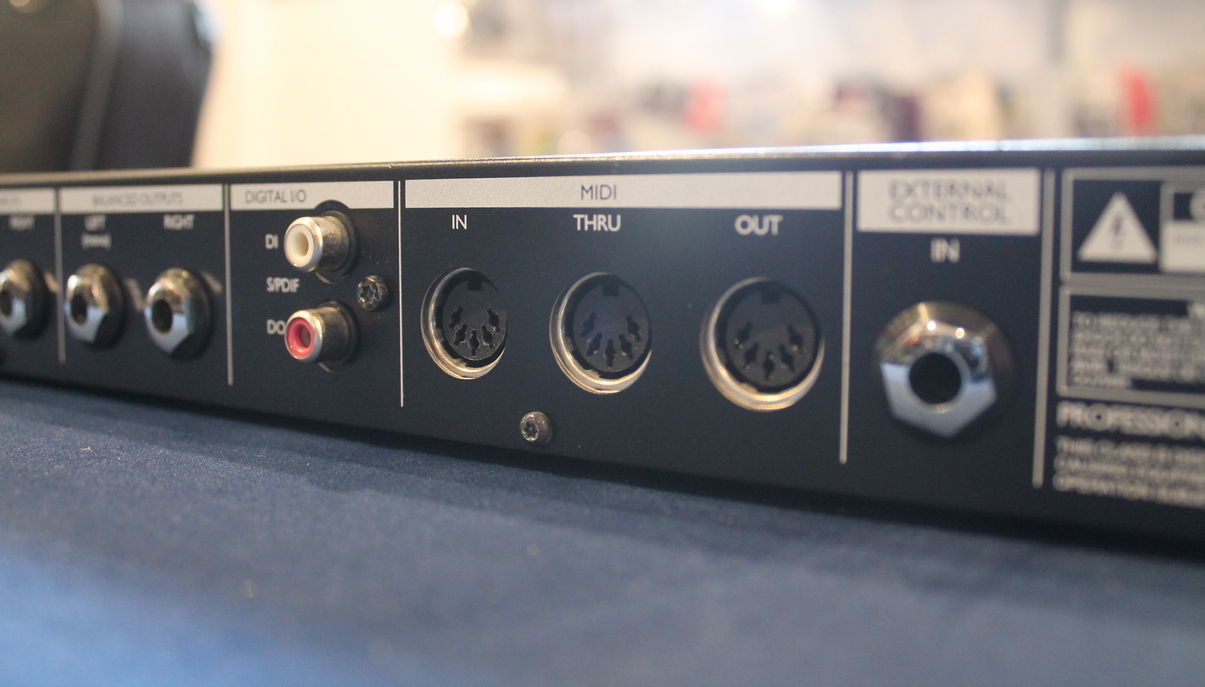

Control Interface
MIDI In/Out/Thru: 5 Pin DIN
Pedal 1/4″ phone jack
Relay closure (seperate tip and ring connection to sleeve) 1/4″ phone jack
General
Finish Anodized aluminum front Plated and painted steel chassis
Display 23 character / 280 icon STN-LCD display
Dimensions 19″ x 1.75″ x 8.2″ (483 x 44 x 195 mm)
Weight 4.1 lb. (1.85 kg)
Mains Voltage 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption <15 W
Warranty Parts and labor 1 year
