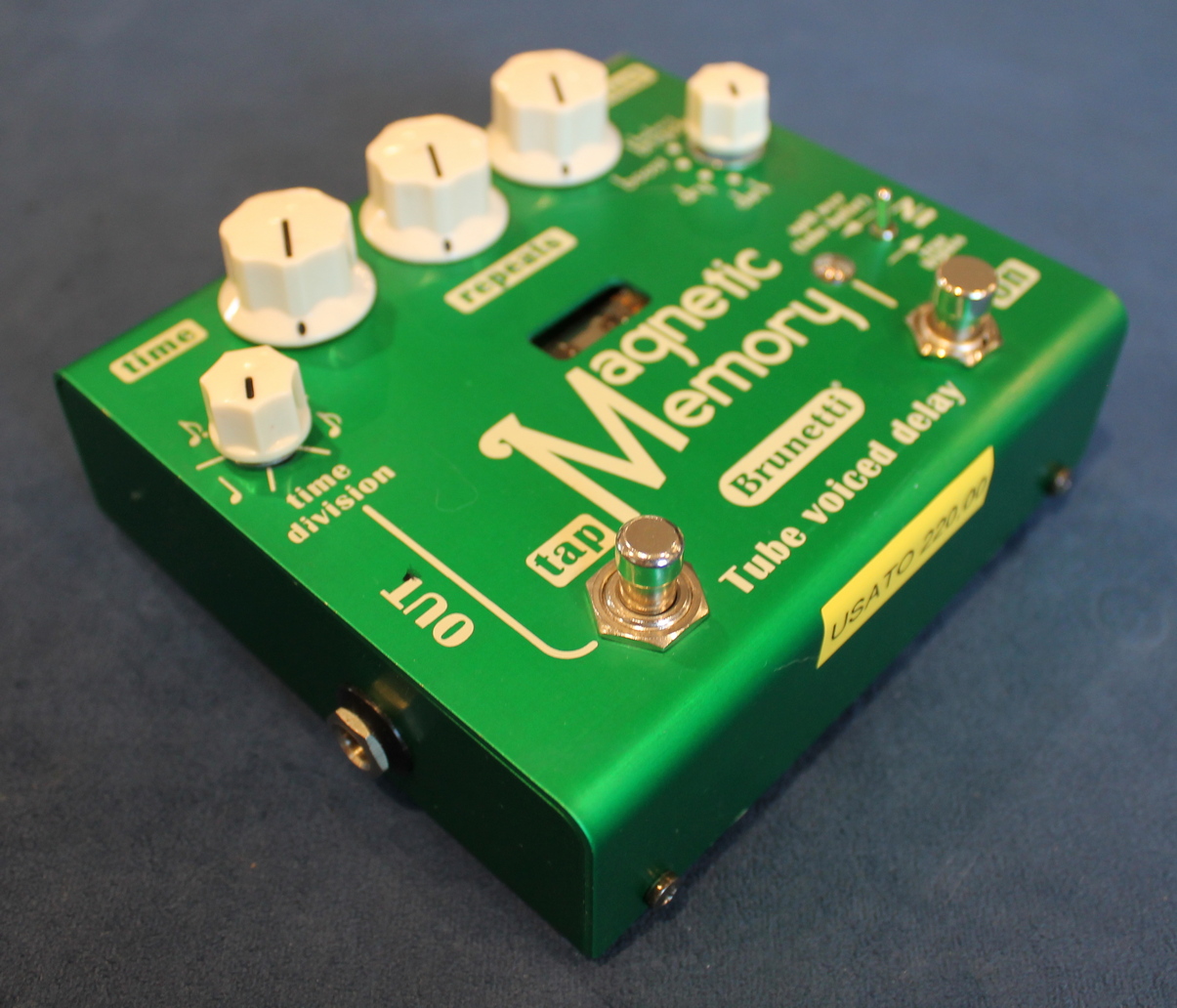

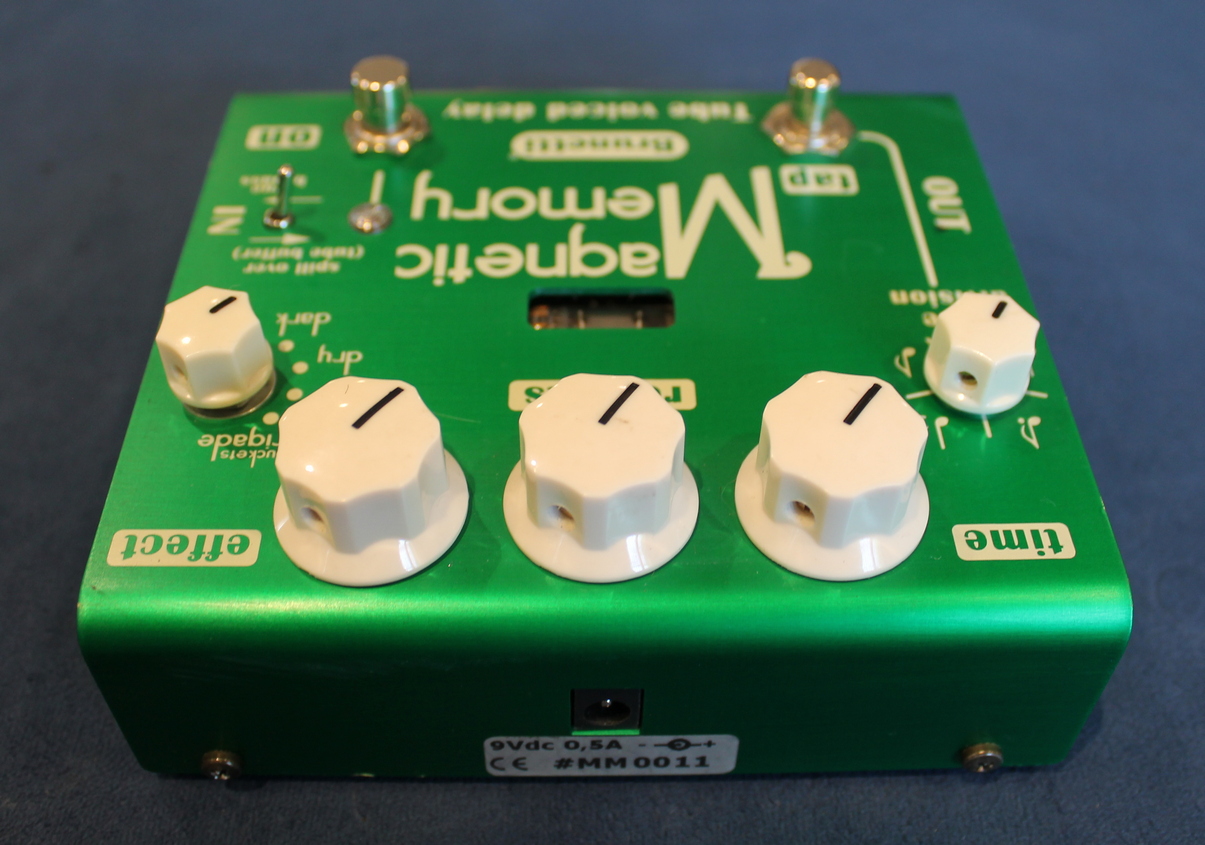

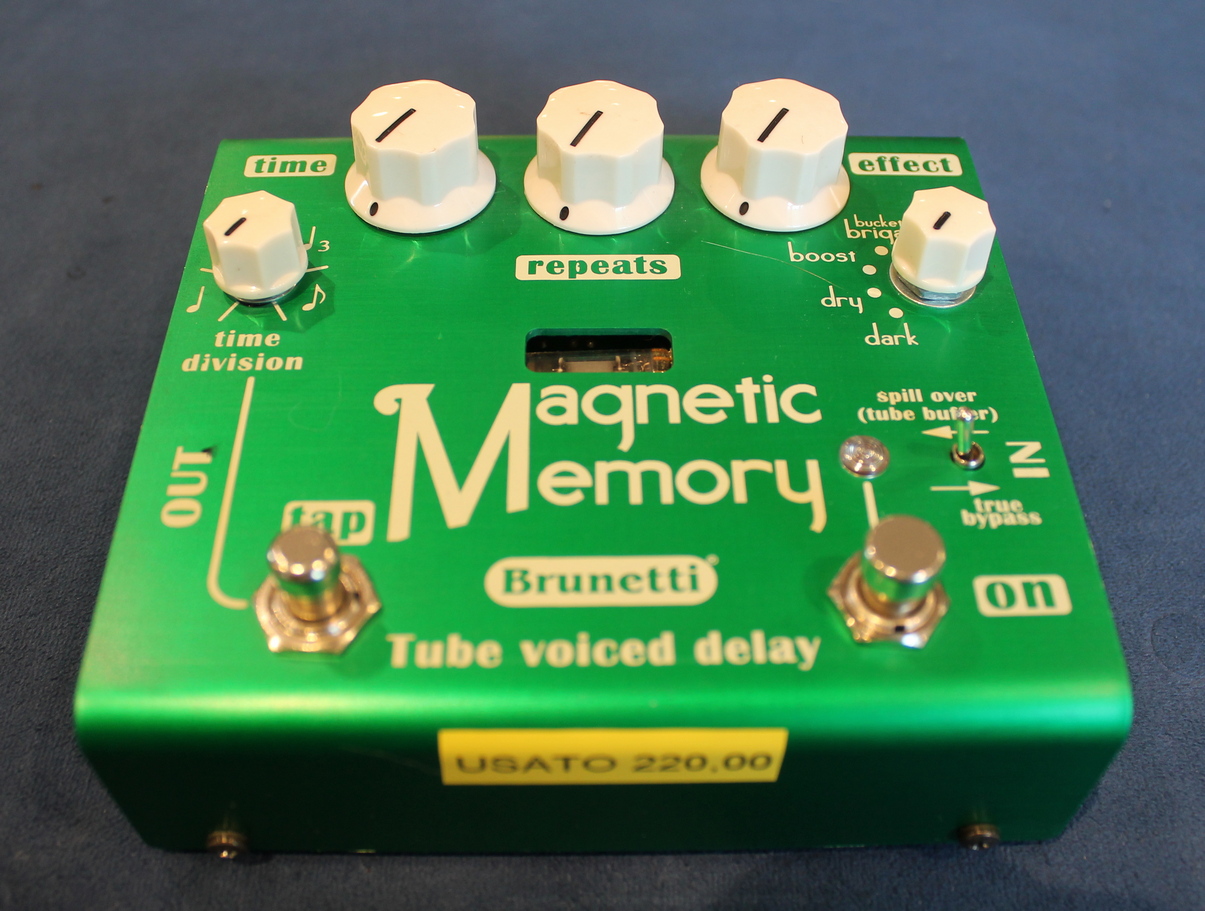

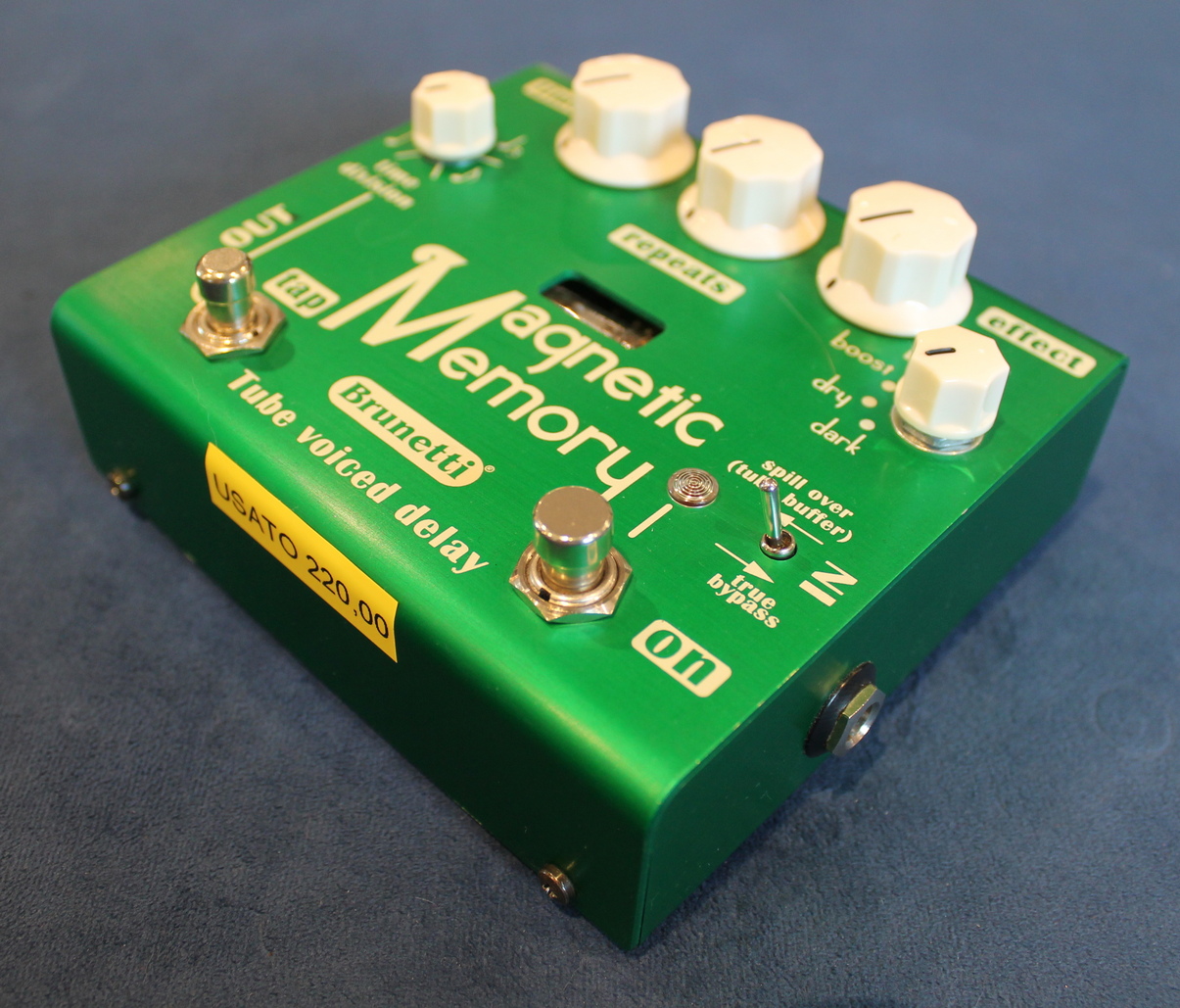

Magnetic Memory is the Tube Delay designed and manufactured by Brunetti in Modena, Italy. Hundreds of delay effect pedals are available on the market, each one with more or less similar characteristics. What seems to be less and less common nowadays is the research of the “harmonic” sound, intrinsically imperfect. Modern technologies use digital techniques to recreate an old analog sound. They give many possibilities, but they lack a specific “character”. Magnetic Memory combines the digital management of the delay signal, made on purpose with a vintage concept, with a completely analog tube driven signal processing. We chose a specific tube, with a military/aeronautic origin, the mini 6111: it fits extremely well in a guitar pedal, thanks to its characteristics and mechanical sturdiness and stability.
True Bypass
Input impedance: >=500 KOhm
Output impedance: 25 KOhm
Max out level: 600 mV
Voltage supply: MAX 9Vdc WARNING!!! DO NOT EXCEED THIS VOLTAGE RATING
CH2 switching remote jack
WIMA MKP capacitors, made in Germany
Metal-film or carbon composition resistors depending on their function
SH multiwiper potentiometers, aluminium wiper
Sealed low power golden relay
Current drawn: MAX 30 mA
