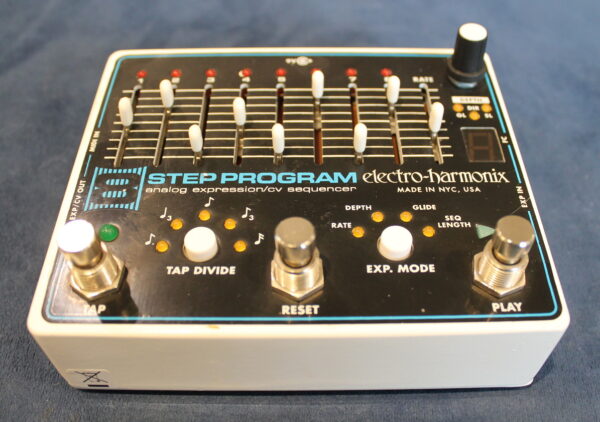

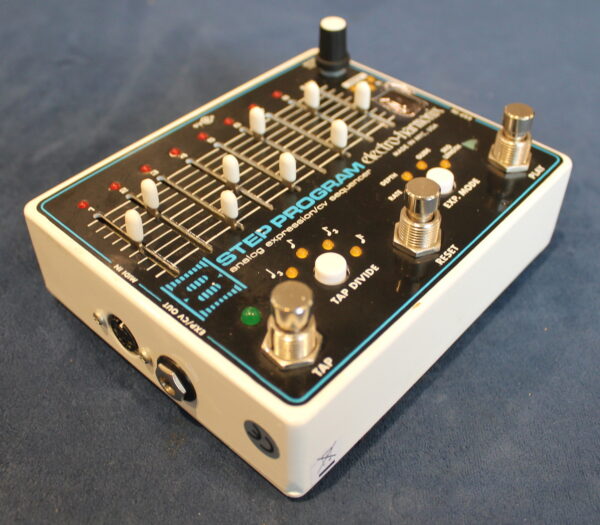

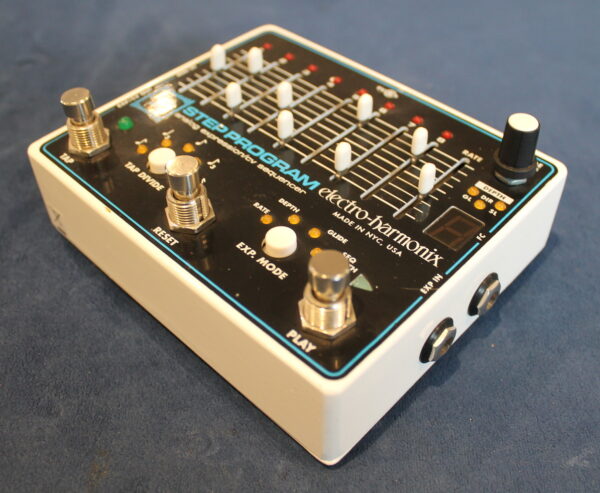

The 8 Step Program is an analog sequencer that connects to the expression pedal input of many types of effects pedals, keyboards, and other devices. Think of the 8 Step Program as a replacement for your expression pedal, controlling parameters sequentially rather than continuously, as you would normally do with an expression pedal. In addition, the 8 Step Program can be connected to devices that have inputs with voltage control (CV). This pedal connects to another device and provides sequencer control over parameters that respond to expression pedals or CV generators such as oscillators, filters, delay parameters, etc. Set the tempo with the Rate slider or Tap Tempo footswitch, or synchronize an electronic drum kit via MIDI clock. Five Tap Divide modes provide great rhythmic variety.
Features:
Sequence length selectable between 1 and 8 steps
4 Direction modes: Forward, Reverse, Bounce and Random
Depth and Glide encoders-adjustable
Tap Tempo button to set tempo, which can also be divided into faster tempos
Three Play Modes: Loop, 1-Shot and Step-Thru (Manual)
Reset button to instantly restore sequence to starting point
Expression In allows external control over Rate, Depth, Glide or Length of sequence
Expression In also serves as external CV Clock input to synchronize the 8 Step to an external clock
MIDI IN input to synchronize 8-Step to MIDI Clock
Full MIDI control over all parameters of the 8 Step
TRS cable for expression control provided
Use a standard 1/4” TS instrument cable for CV control (0-5V)
Save and load up to 10 presets
Save and load up to 100 presets with the 8 Step Foot Controller (sold separately)
Power supply: EHX 9.6VDC-200mA power supply included
Dimensions: 145 x H64 x 120mm
