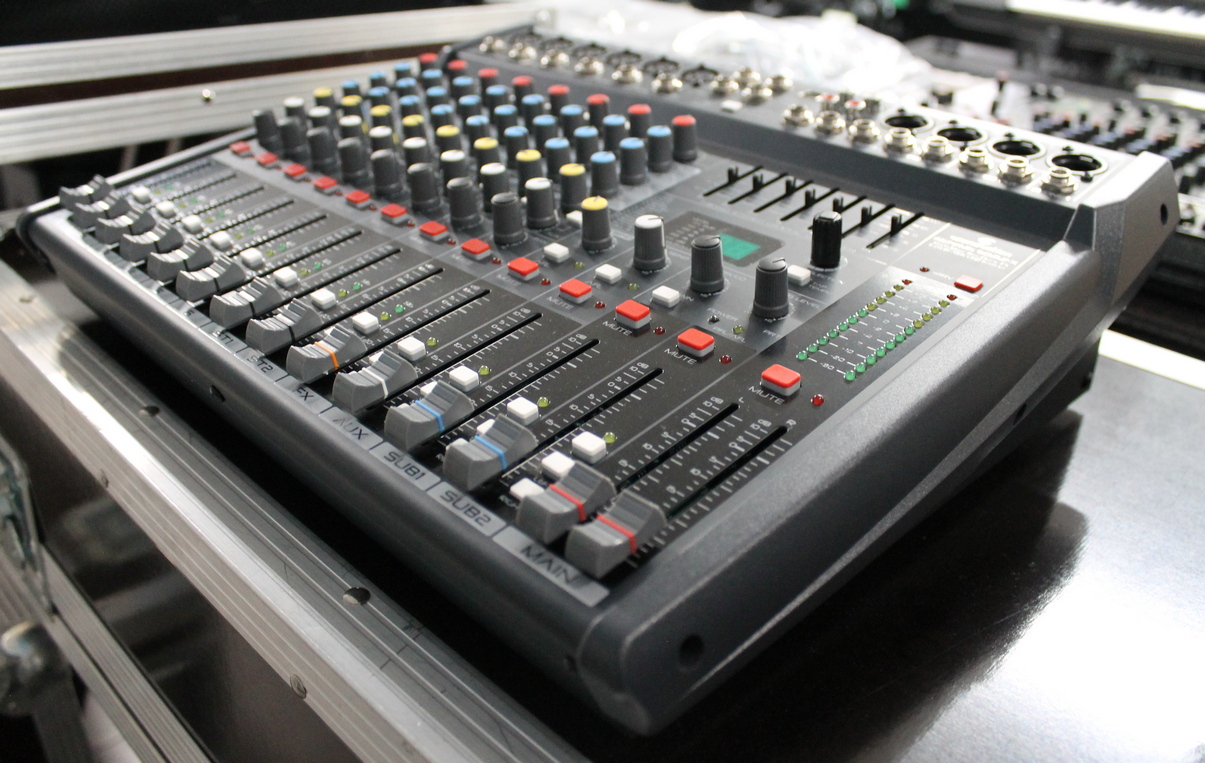

The AlcheMix series of mixers has been designed to meet the needs of musicians and show business operators who require reliable and professional instruments for live shows, rehearsal rooms, music schools, home-recording, etc.
The architecture of these 2-Bus mixers includes 2 subgroups, 2 AUX sends (one Pre/Post-Fader; the other fixed Pre-Fader). All channels offer 3-band EQ, MUTE, PFL/AFL, SUB and Main assignment.
A 7-band graphic EQ on the main outputs with precision filters and a 48kHz/24-bit Digital Effect complete the user’s toolkit. The digital multi-effects feature 16 of the most commonly used presets (Hall-Room-Plate reverbs, Delay-Eco) and allows up to two parameters to be changed with the Tap-Tempo button.
The line consists of four models: Alchemix 402FX, 402UFX, 602UFX and 802UFX with 4, 6 and 8 low-noise mic/line preamps. The 402-602-802UFX models also feature a USB Stereo 2-In/2-Out sound card for PC/Mac recording/playback at up to 96kHz/24-bit.
Technical Specifications
10 Channels in Total
6 Mic/Line channels with low-noise preamp and wide-range gain, balanced 6.3mm XLR and Jack, 75Hz low-cut filter, +48V phantom power, signal/peak LED indicator
2 Stereo Line Channels with balanced 63mm Jacks, with gain adjustment and Signal/Peak Indicator
3-Band EQ, Pan/Balance, Mute, PFL, Groups 1-2, Main L-R, Volume with 60mm Fader
2 AUX sends (1 with Pre/Post selection for internal effect or AUX1 output; 1 Pre-Fader for AUX2 output) with channel and master level, AFL, and 63mm jack outputs
Effect/AUX1 and AUX2 returns with 60mm faders, Mute, AFL, Group1-2, L-R assignment, and balanced 63mm Jack inputs
XLR outputs for Groups 1 and 2 with 60mm faders, Mute, AFL, and Left and Right master assignments

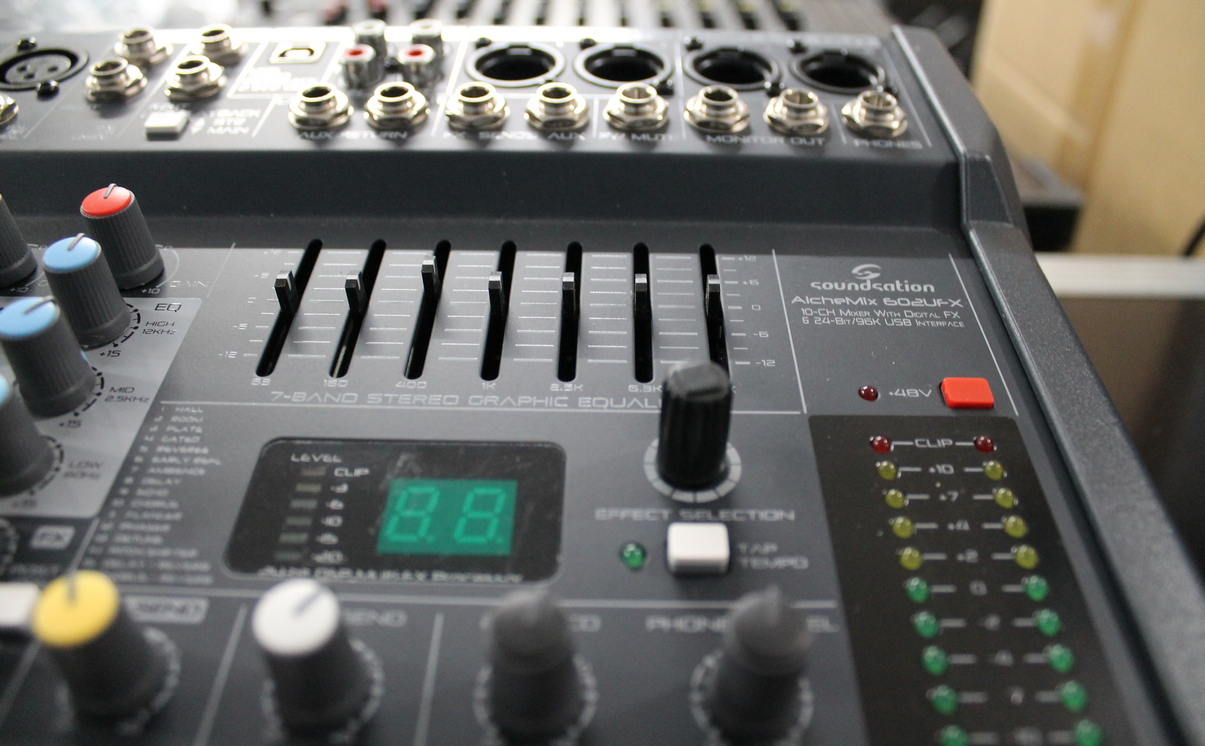

7-band graphic EQ with precision filters on main bus
24-bit/48kHz digital effect with 16-presets, mute pedal, tap-time button and up to 2 adjustable parameters per preset
USB Stereo Soundcard with up to 96kHz/24-bit recording/playback quality
2-Track RCA In/Out connections with level control
6.3mm Stereo headphone output with volume control
Main XLR outputs with 60mm fader and mute
Stereo VU-Meter with 12 LED segments for Main and PFL/AFL control
Stereo Monitor Outputs with 6.3mm Jacks
Lightweight and robust metal chassis
Digital Effect: 16 Effects, 24-bit Sigma-Delta, 256 oversamples at 48kHz
USB Sound Card: Streaming In/Out up to 24-bit/96kHz Stereo, USB Class 2.0 standard
Phantom power supply: +48V
Power supply: 150V-240V~50Hz, 15W Max.
Dimensions (WxDxH): 376 x 316.5 x 134 mm
Net Weight: 5.0 kg
