The R active speaker series consists of 4 full range wooden cabinets equipped with woofers from 8″ to 15″ and 2 active subwoofers equipped with single 15″ and 18″ woofers. The full-range cabinets are capable of delivering considerable sound pressure , while ensuring clear and faithful reproduction of the vocal range, thanks in part to the contribution of linear phase FIR filters on the on-board DSP.

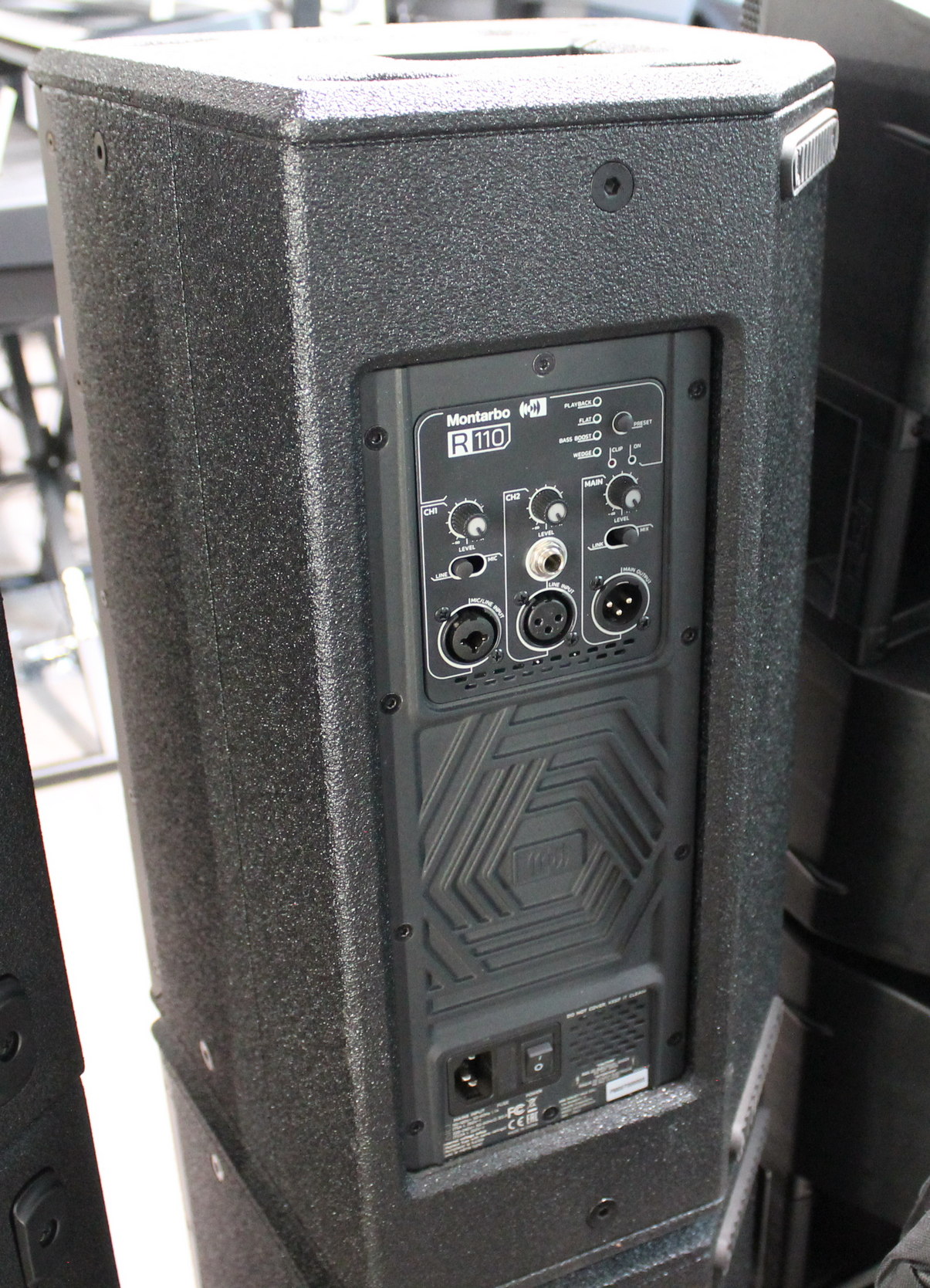

The 4 selectable preset equalizations allow quick optimization for various applications, including use as stage monitors. The full-range speakers have two inputs (mic/line combo and an additional line combo input) with independent level management. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

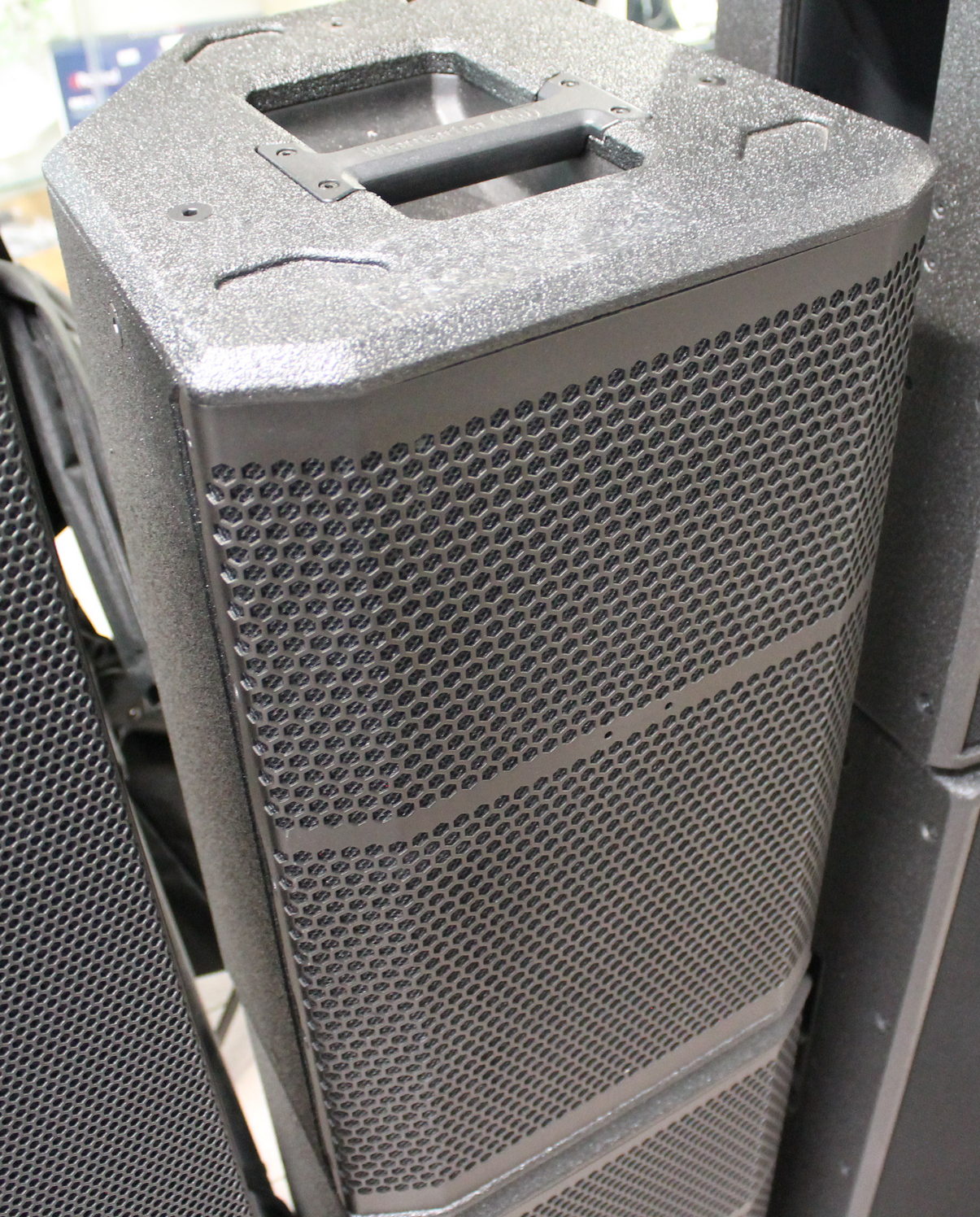

The R series wood cabinet features a sleek black finish, a very minimalist design, and aluminum handles mounted flush with the side panels, features that give the entire R series an understated and very professional look.
Features:
System Type: 2-way Bass Reflex Speaker
Maximum SPL (at 1m): 127dB
Frequency response (-10dB): 61Hz – 20kHz
HF: 1.35″ driver
LF: 10″- 2″ V.C driver
Dispersion (HxV): 90° x 70°
Crossover Frequency: 1780Hz
Peak power: 400W
Cooling: Fan
DSP: 28/56-bit
Advanced functions: FIR filter
Connectors: Combo (ch1), XLR-F + 6.35mm jack (ch2), Line Out XLR-M
Controls: Channel level, Main level, Preset, channel 1 sensitivity, LINK / MIX output
Cabinet: Plywood with polyurea finish
Dimensions: 304 x 505 x 305mm
Weight: 12.7kg
