Studiologic Numa Organ USATO cod. 91621

For the Numa Organ Studiologic has made use of prestigious collaborations that guarantee the absolute quality of this product: the synthesis engine comes from the system developed by Elvio Previati for the KeyBDuo; for the control panel it has relied on Axel Hartmann. The result is a stage organ with 9 physical drawbars, octave with inverted colors for preset management, Drive and Rotary controls to manage the Leslie effect. The Wheels section allows you to control pitch bend and speed or modulation for MIDI. A switch allows you to disable the Rotary effect. Numa Organ comes with a six-position encoder to select different chorus and vibrato variations. A full set of 9 drawbars with three switches to change the combinations of top, bottom and pedal sections. The split function allows you to split the keyboard with top section on the left and bottom section or pedals on the right. In the Transpose section, pressing Up/Down transposes the keyboard by one semitone. The Percussion section lets you add a set of percussive samples to the sound of the drawbars. Numa Organ also includes a complete effects section to add and modify the sound in real time: Reverb, Drive, Key-Click and Leakage. The Equalizer section controls the bass and treble of the master output.

Features:

Keyboard type: TP8O (Waterfall Organ)
Keyboard Size: 61 + 12 Keys
Sound engine: Synthesis for physical models, 12 presets, effects processor
CONTROL ELEMENTS
9 Drawbars
Pitch Wheel
Rotary / Modulation Wheel
Chorus / Vibrato knob
Preset
Split
Transpose / Tune
Percussion
Effects (Reverb, Drive, KeyClick, Leakage)
Output volume / EQ
Fatar dynamic TOUCH

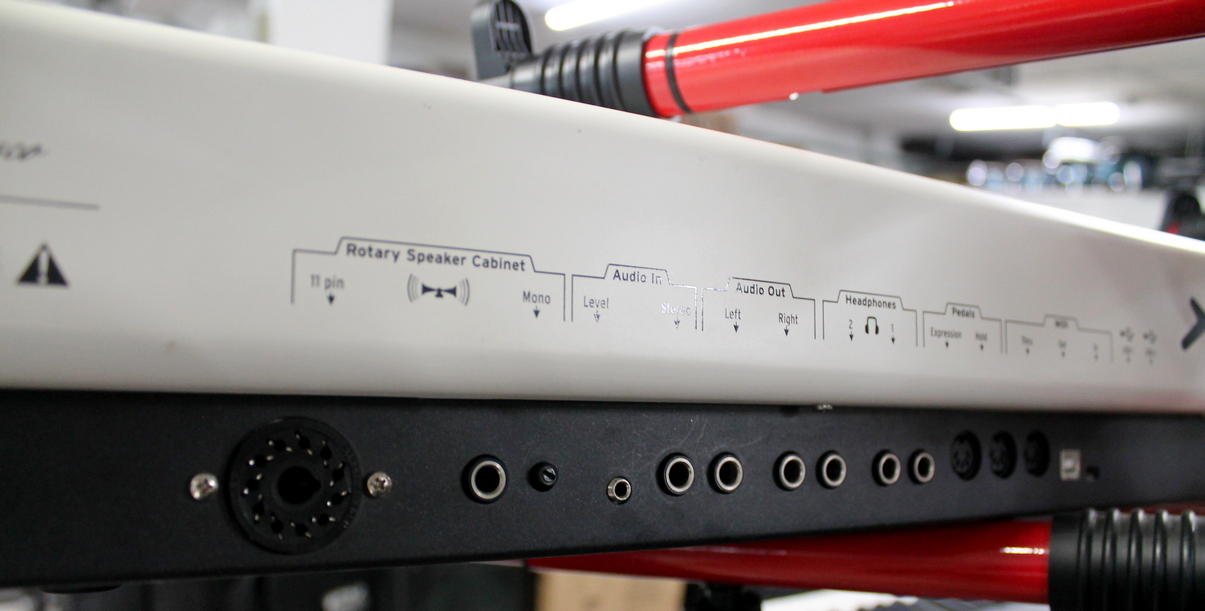

CONNECTIONS
2x Audio Out (L/R), 6.3 mm jack
1x Audio Stereo In, 3.5 mm mini jack
2x Headset Out
2x USB (MIDI / Upgrades)
1x MIDI In / Out / Thru
2x Pedal (Sustain / Expression)
1x 11pin Rotary speaker system connector
DIMENSIONS AND WEIGHT
Dimensions: 1110 x 350 x 115mm
Weight: 10.0kg
