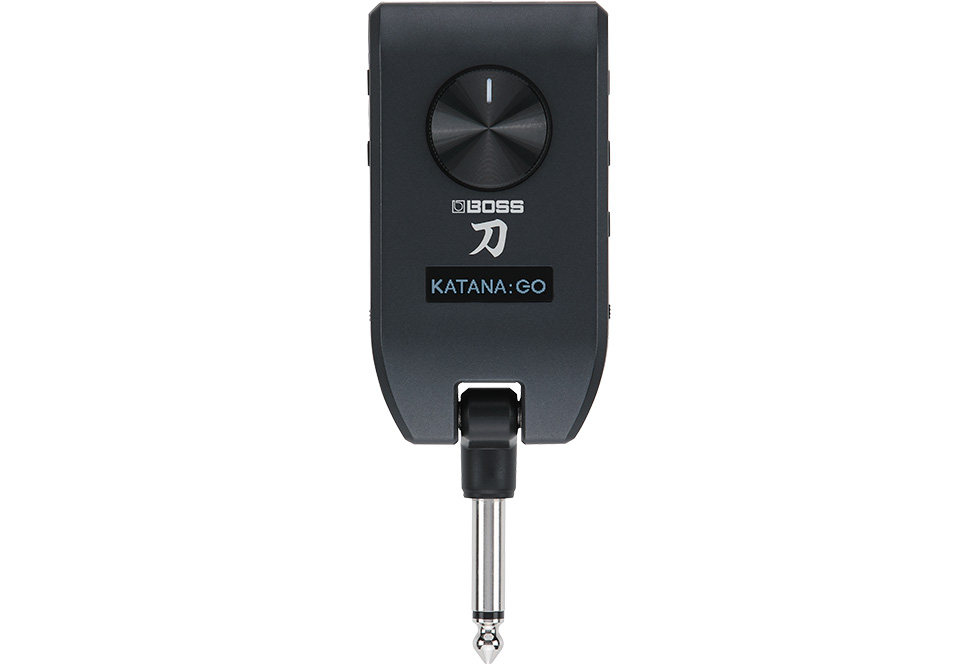

Boss Katana:GO

Specifications
Sample Rate
48 kHz
AD Conversion
32 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion
32 bits
Memories
Guitar mode: 30
Bass mode: 30
Nominal Input Level
INPUT: -10 dBu
Input Impedance
INPUT: 1 M ohm
Maximum Output Level
PHONES: 30 mW + 30 mW
Output Impedance
PHONES: 4.7 ohms
Recommended Load Impedance
PHONES: 16 ohms or greater
Display
Graphic OLED display (128 x 32 dots)
Controls
Master volume knob
POWER switch
A button
B button
C button
Bluetooth(R) button
STAGE FEEL button
Multi-function button
Connectors
Input plug: 1/4-inch phone type
PHONES jack: Stereo miniature phone type
USB port: USB Type-C(R)
Bluetooth
Profile Support: A2DP (Audio)
GATT (MIDI over Bluetooth Low Energy)
Power Supply
Rechargeable lithium-ion battery
Supplied from the USB port
Current Draw
500 mA
Expected battery life under continuous use
Approximately 5 hours
* These figures will vary depending on the actual conditions of use.
Battery charging time
Approximately 3 hours
* To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 500 mA or higher).
Accessories
Leaflet “Quick Start“
Leaflet “USING THE UNIT SAFELY“
USB Type-C(R) to USB Type-A cable
Size and Weight (Include handle and rubber feets)
Width
45 mm
1-13/16 inches
Depth
125 mm
4-15/16 inches
Height
24 mm
1 inches
Weight
70 g
3 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
