Palmer Power Pad PDI06 MkII USATO cod. 5922

165,00

The PDI06 is a power attenuator for live use. The connection point is located between the output of the amplifiers and the speaker cabinet. This allows you to take advantage of the desired distortion of the tube power amplifiers while reducing the connected high volume. To meet stage and rehearsal room demands, the volume can be reduced from 100% to 18% in six different levels.

Esaurito

Avvertimi quando sarà disponibile!

The PDI06 is a power attenuator for live use. The connection point is located between the output of the amplifiers and the speaker cabinet. This allows you to take advantage of the desired distortion of the tube power amplifiers while reducing the connected high volume. To meet stage and rehearsal room demands, the volume can be reduced from 100% to 18% in six different levels.

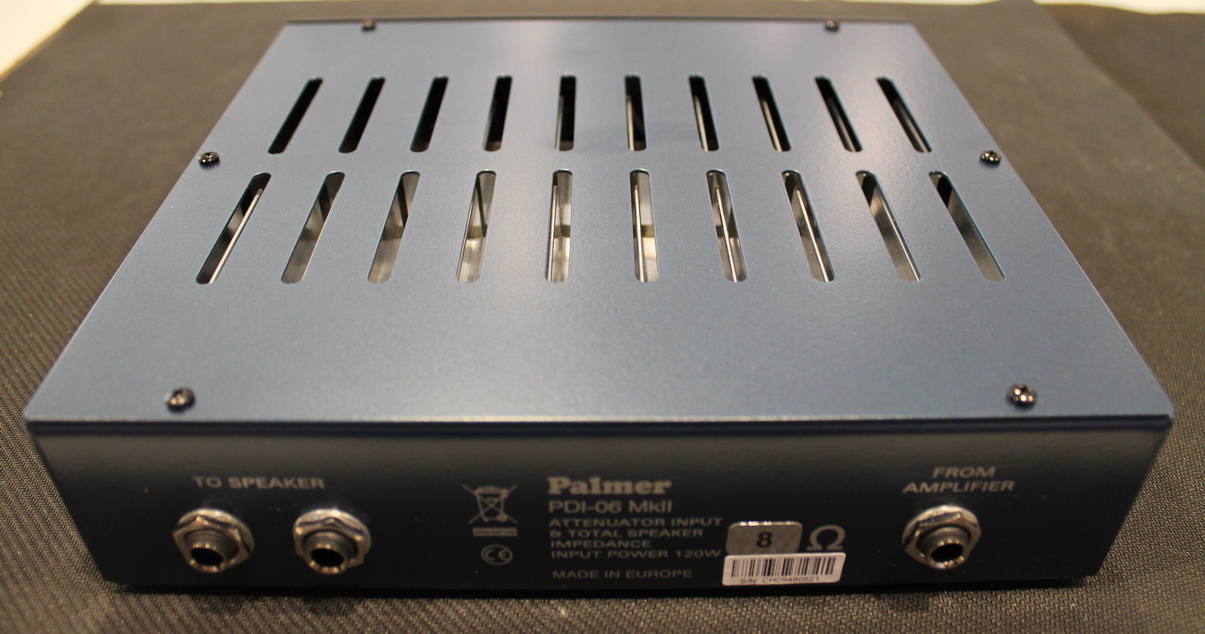

At the next level, the PDI06 operates as a load box, absorbing all of the amplifier’s power and placing it in the mute position. This mode of operation is useful if, for example, you want to connect an amplifier, equipped with speker emulation, directly to the mixer via an existing line output, without generating noise in the recording room. The unit has one input for the speaker signal from the amplifier and two outputs for connecting speaker cabinets. The total speaker impedance must match the value listed on the PDI06. Example: You can connect one 8-ohm speaker or two 16-ohm speakers to the outputs of a PDI06, which is specified for 8 ohms (the 16-ohm version has only one output). The output of the valve amplifier is also set to 8 Ohms.

Features

Channels: 1
Input type: Unbalanced
Inputs: 1
Input connectors: Jack 6.3mm
Output type: Unbalanced
Outputs: 2
Output connectors: Jack 6,3mm

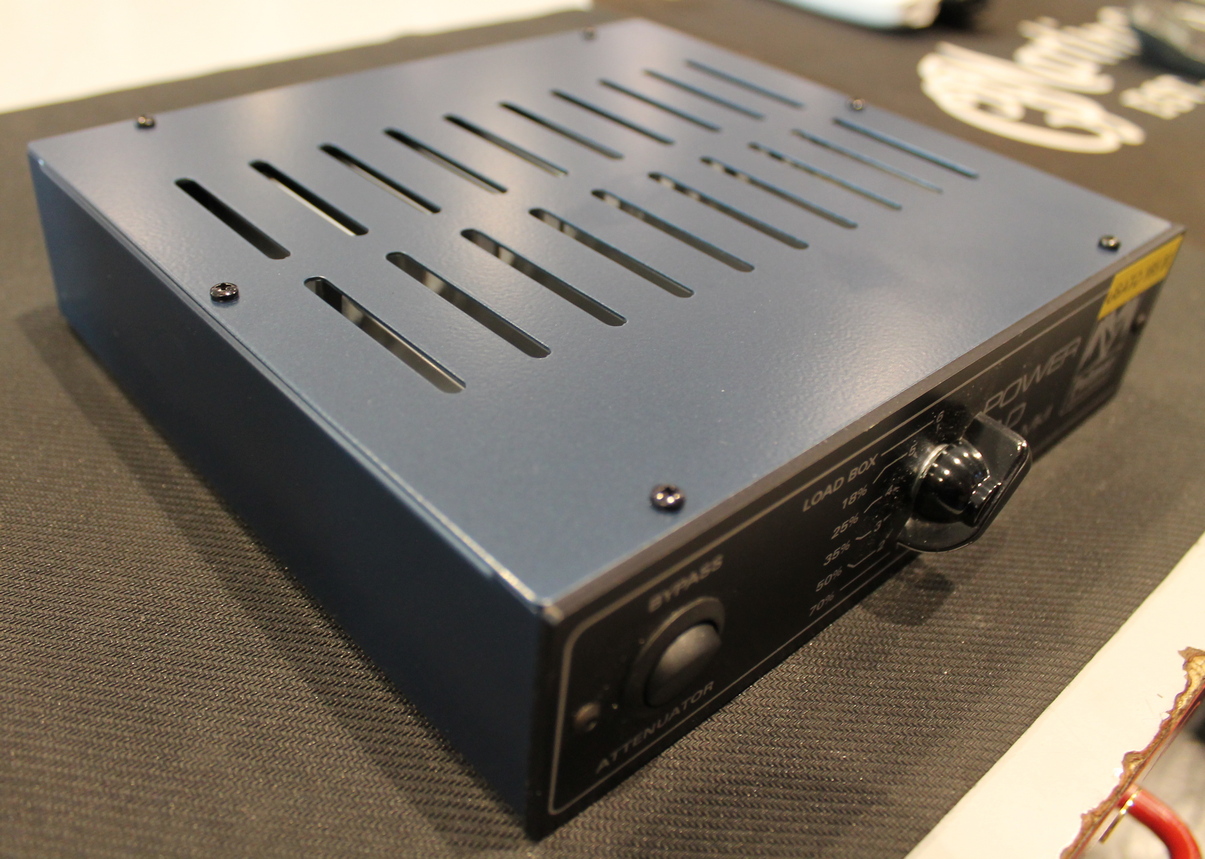

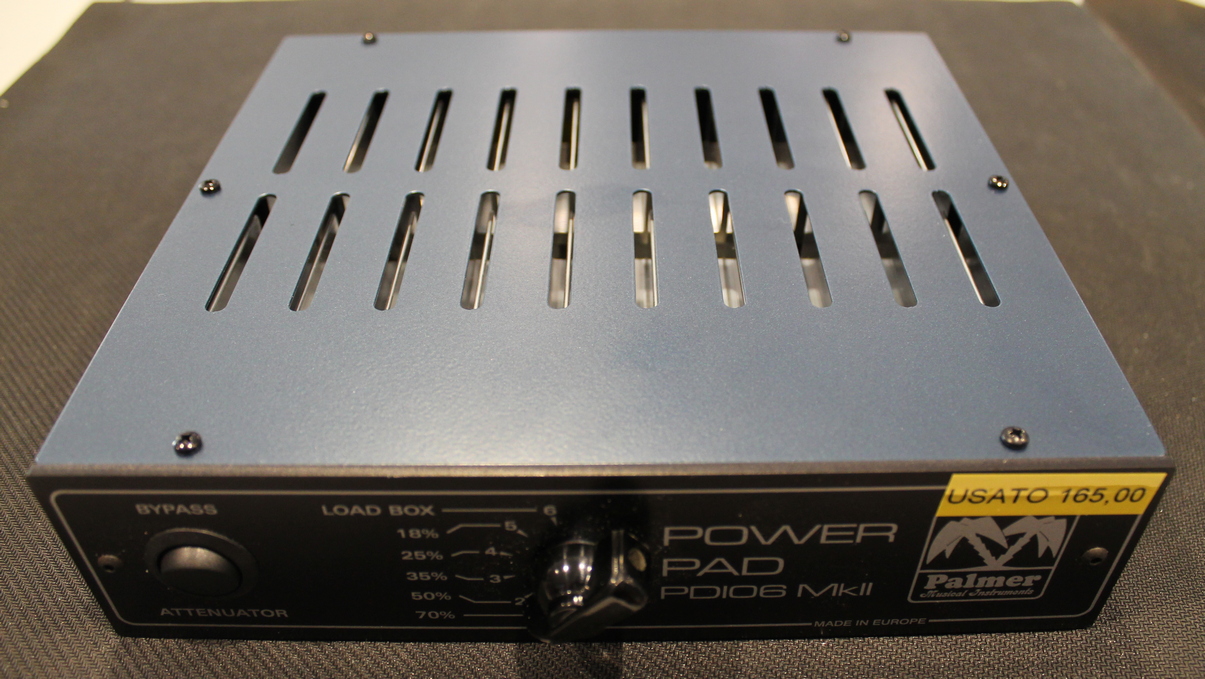

Controls: Bypass, rotary attenuation switch
Dummy Load: Yes
Dummy Load Impedance: 8 Ohm
Max Load: 120W
Voicing filter: No
Power Attenuator: Yes
Transformer Isolated Outputs: No
Chassis Material: Sheet Steel / Aluminum
Surface: Powder-coated / Anodized
Dimensions: 120 x 120 x 50mm
Weight: 2.4kg
