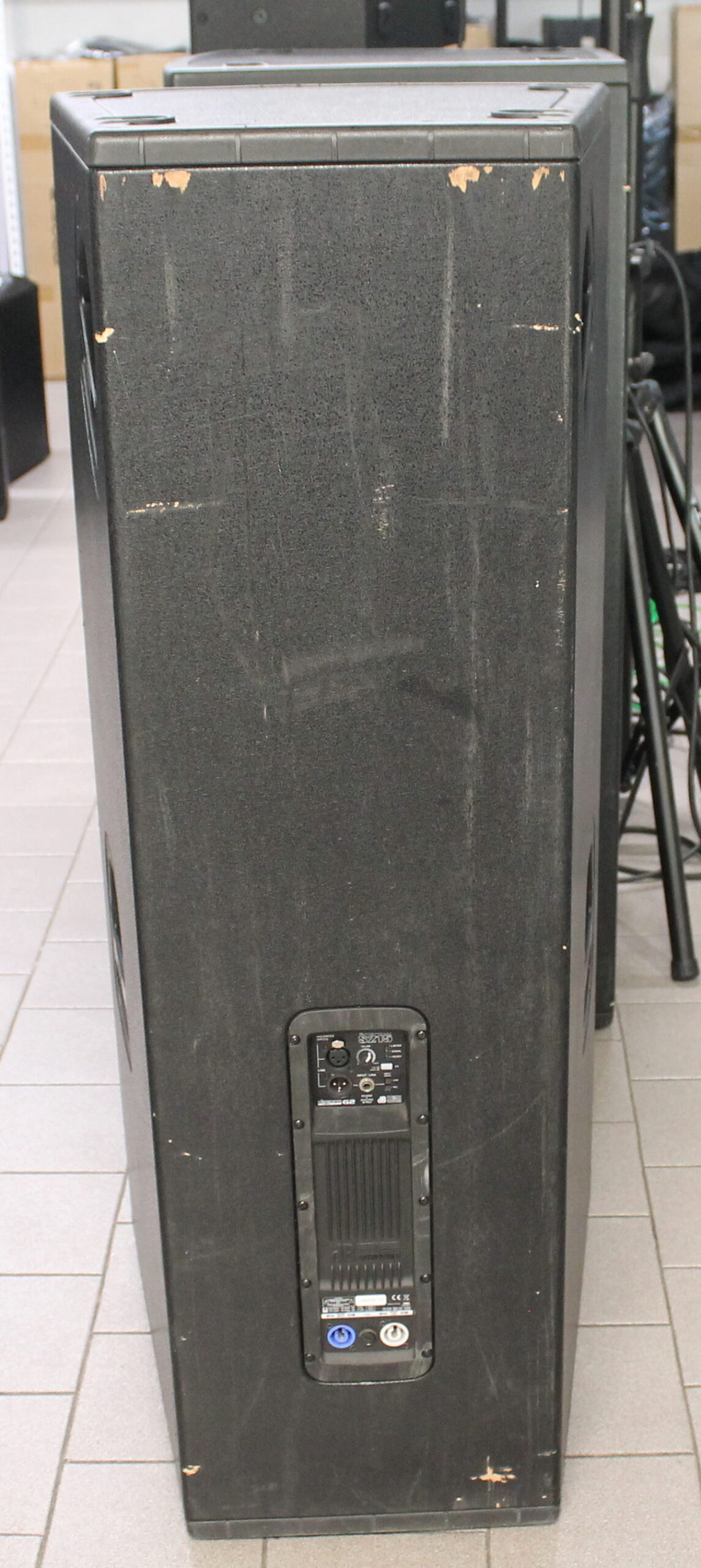

The new S215 loudspeaker offers remarkable performance in a compact box built with an innovative technique of very sturdy pvc-faced wood.
The 1400-watt digipro G2 digital amplifier with dual equalization memory allows the speaker’s sound to be tailored for each use.
The speaker’s unique configuration is based on the dual 15″ woofers and the compression driver with 2.8″ coil, which, combined with the mechanical phase shifter, create a system that can be defined as three-way mechanically and two-way electronically.
The result is an extremely powerful and precise sound in the midrange frequencies, with excellent diffusion even at long distances.
TECHNICAL DATA:
Speaker Type: Quasi 3-Way Active Speaker
ACUSTIC DATA:
Frequency Response [-10dB]: 42 – 20,000 Hz
Max SPL: 139 dB
HF: 1.4 ”
Type HF: Titanium Compression driver
HF Voice Coil: 2.8″
Directivity: 60 x 40°
Horn: CD Horn
LF: 2×15″ (with phase plug)
Voice Coil LF: 3″
AMPLIFIER:
Amp Technology: Digipro® G2
Amp Class: Class D
Power PRG: 1400 W
Peak Power: 2800 W
PROCESSOR:
Controller: DSP 24bit/48kHz
System Presets: Flat, Boost
Limiter: Dual Active Peak, RMS, Thermal
Crossover Frequency MF-HF: 1100 Hz
MF-HF Slope: 24 dB/Octave
INPUT SECTION:
MECHANICS
Box: Multiplex with H.E.T coating, reinforced
Width: 509 mm (20.36 in)
Height: 1215 mm (48.6 in)
Depth: 533 mm (21.32 in)
Weight: 50 kg (110.23 lbs)
