Yamaha’s DBR powered speaker systems offer excellent sound quality, reliability, and portability in three affordable models. Using the latest DSP, engineers have applied Yamaha’s exclusive FIR-X tuning to optimize sound, and protection algorithms to give the DBR series maximum power output. The DBR models are bi-amped, using a separate power amplifier for the woofer and high-frequency driver to provide accurate performance. All acoustic components are specifically designed to take full advantage of the power amplifiers and DSP resulting in a very natural sound, even at very high levels. With a simple switch, a DBR can be easily configured for use as a stage monitor or high-performance main speaker, making setup a breeze.
Features:
System Type: 2-Way, Bi-amplified, Bass-reflex
Frequency range: (-10 dB) 52Hz – 20kHz
Coverage Angle: H90° x V60° Constant directivity horn
SPL max (Peak) IEC Noise @ 1m: 131 dB SPL
Crossover: 2.1 kHz FIR-X tuning (FIR linear phase filter )
Dynamic power rating: 1000 W (LF 800 W, HF 200 W)
Nominal continuous power: 465 W (LF: 400 W, HF: 65 W)
Power Consumption: 74W
LF Components: 12″ Cone, 2″ Coil, Ferrite Magnet
HF Components: 1.4″ compression tweeter, Ferrite magnet

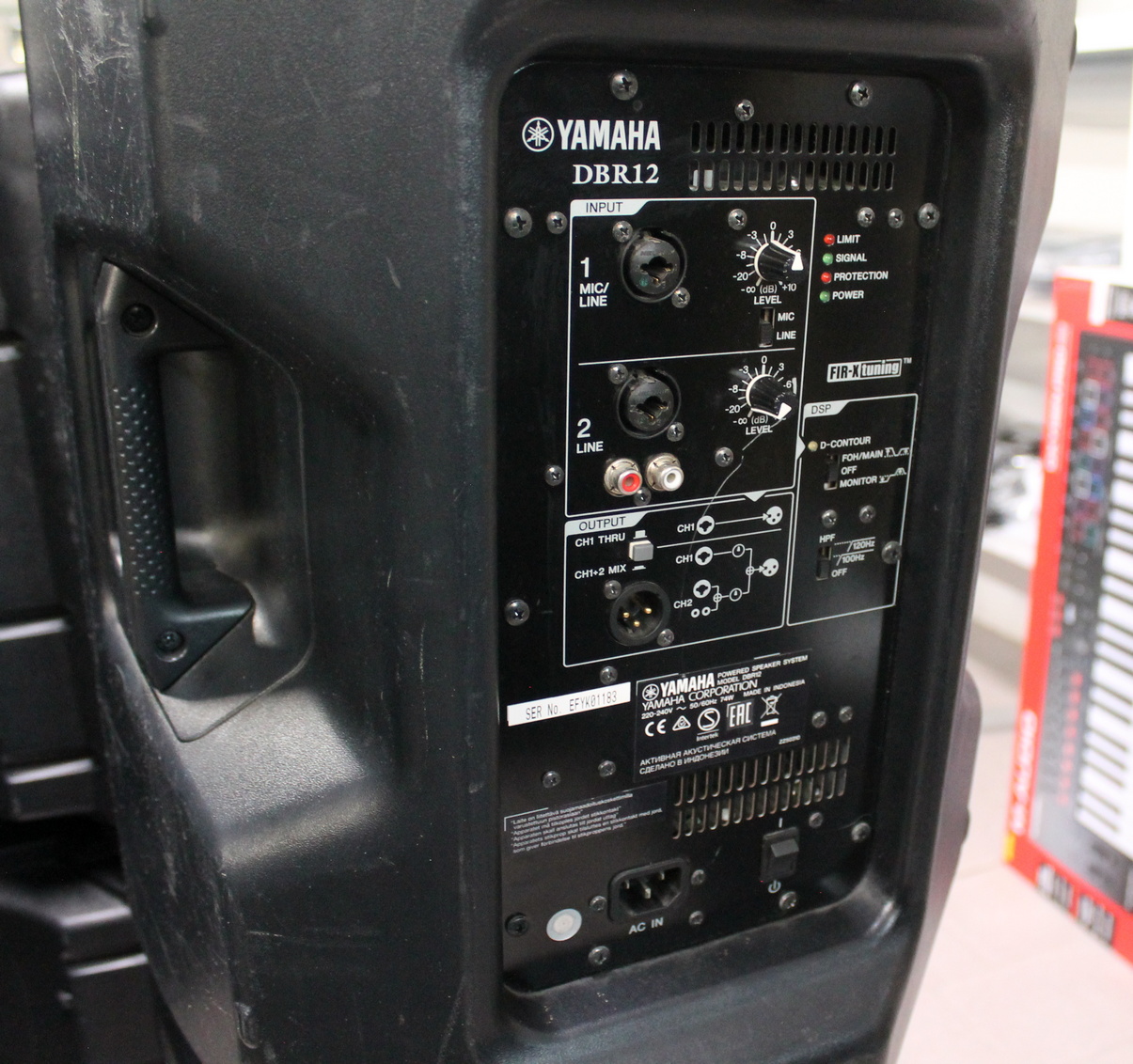

Input 1: Combo x1
Input 2: Combo x1 + RCA pin x 2 (unbalanced)
Output: XLR3-32 x1 (CH1 Parallel Through or CH1 + CH2 Mix)
Handles: 2 side handles
35mm hole for stand
Dimensions: 376 x H601 x 348mm (including rubber feet)
Weight: 15.8kg
