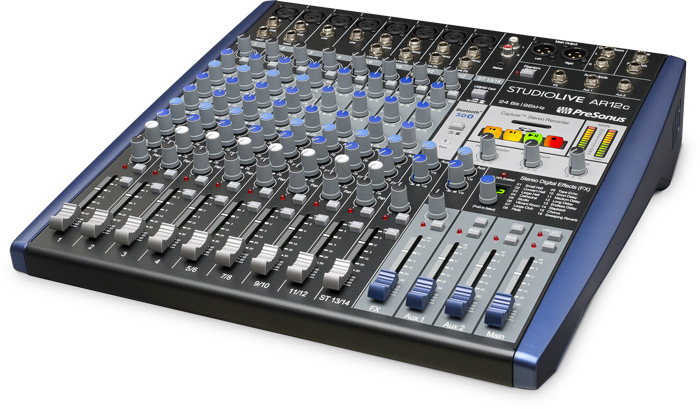

Presonus Studiolive AR12C

Registrazione audio facile

Non lasciarti ingannare dalla sua caratteristica configurazione da mixer analogico: StudioLive® AR12c è stato progettato per registrare.

Puoi utilizzare la sua architettura ibrida che comprende 8 preamplificatori microfonici XMAX ed un interfaccia audio 14 x 4 canali 24bit/96kHz su USB2.0 con compatibilità USB-C per gestire contemporaneamente fonti analogiche e digitali.

Aggiungi funzionalità quali EQ analogico a 3 bande, boost mic/line per microfoni broadcast con basso livello di uscita o synth vintage, effettistica digitale completamente nuova, connettività Bluetooth e registrazione stereo su SD…ed otterrai un fantastico strumento che soddisfa le necessità dei moderni musicisti, produttori e broadcasters.

Caratteristiche tecniche:

Recording

14×4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface
Record every channel plus the main mix
2×2 SD recorder to capture the main mix
Supports SD™ and SDHD™ formats up to 32 GB

Mixing

14-channel analog mixer
8 balanced microphone inputs with XMAX mic preamps
2 insert points
2 instrument/line inputs
12 balanced line level inputs:
4 mono
4 stereo pairs
Stereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
4 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ
2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output
L/R Control Room outputs with level control
Headphone output with level control

Signal Processing

Highpass filter on every channel
3-band quasi-parametric EQ with sweepable mid-band on each mono channel
3-band semi-parametric EQ on each stereo channel
Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
Mic/line boost on stereo channels for low-level input sources and consumer devices

Included Software

Capture™ live multitrack recording software
Studio One ® Artist recording and production software (DAW)
Studio Magic plug-in suite

Power

Internal power supply
Standard IEC power connector

Physical

Sturdy metal construction
60 mm faders
Optional rackmount kit

Specifiche tecniche:

Microphone Preamp

Type     XLR Female, Class A XMAX
Maximum Input level (unity gain)     +9 dBu ±1.0 dB
Gain Control Range     43 dB (+12 to +55 dB)
Frequency Response to Analog Outputs     20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct)     20 Hz to 20 kHz, +0.5/- 1.5 dB
S/N Ratio to Outputs (+4 dBu)     94 dB
THD+N (min. gain, A-wtd)     < 0.01%
Input Impedance     1 kΩ
EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd)     Mono Channels: < 128 dBu
Common Mode Rejection Ratio (1 kHz, +55 dB gain)     65 dB
Phantom Power     +48V, ±3V, Global
Instrument Inputs

Type     ¼” TS Female, Unbalanced, Hi-Z
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N)     +9 dBu ±1.0 dB
Gain Control Range     43 dB, ±1 dB (+12 to +55 dB)
Frequency Response to Analog Outputs     20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct)     20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (min. gain, A-wtd)     > 105 dB
Dynamic Range (mid. Gain, unwtd)     > 108 dB
THD+N (1 kHz, -1 dBFS, A-wtd)     < 0.01%
THD+N (1 kHz, -1 dBFS, unwtd)     < 0.01%
Input Impedance     > 1 MΩ
Line Inputs

Type     ¼” TRS Female, Balanced
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N)     +26 dBu ±1.0 dB
Gain Control Range

Mono Channels: 40 dB, ±1 dB (-5 to +35 dB)

Stereo Channels: 0 dB or +10 dB (+10 dB Boost)
Frequency Response to Analog Outputs     20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct)     20 Hz to 20 kHz, +0.5/-1.5 dB
S/N Ratio to Analog Outputs (+4 dBu)     85 dB
THD+N (1 kHz, -1 dBFS, A-wtd)     < 0.01%
Input Impedance (Balanced)     10 kΩ
Main, Control Room, Monitor, and FX Outputs

Type (Main Outputs)     XLR Male, Impedance Balanced
Type (Control Room, Monitor, FX Outputs)     ¼” TRS Female, Balanced
Rated Output Level (Main Outputs)     +24 dBu, ±1.0 dB
Rated Outputs Level (Control Room, Monitor, FX Outputs)     +18 dBu
Frequency Response     20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd)     > 108 dB
THD+N (Bandwidth 20 Hz – 20 kHz, -1 dBFS, unwtd)     < 0.01%
Output Impedance     100 Ω
Headphone Output

Type     ¼” TRS Female, Stereo, Unbalanced
Maximum Output Level     150 mW/channel @ 60 Ω
Frequency Response     20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd)     > 103 dB
THD+N (Bandwidth 20 Hz – 20 kHz, -1 dBFS, unwtd)     < 0.01%
System Crosstalk

Input to Output (Ref = +4dBu, 20 Hz to 20 kHz, unwtd)     -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd)     -85 dBu
Signal Level LED

Signal     -30 dBFS (pre-EQ)
Clip     -3.0 dB before clip (pre- or post-EQ)
Channel EQ

Low Cut     100 Hz, -18 dB/Octave
High Shelving     ±15 dB @ 10 kHz
Mid Peaking (Mono Channels)     ±15 dB @ 140 Hz to 3.5 kHz (variable)
Mid Peaking (Stereo Channels)     ±15 dB @ 2.5 kHz
Mid-Band Q     Boost: 1.0, Cut: 2.5
Low Shelving     ±15 dB @ 100 Hz
Digital Audio

Host Interface     USB 2.0
ADC Dynamic Range (Component)     114 dB
ADC Dynamic Range (Measured: A-wtd, 48 kHz)     105 dB
DAC Dynamic Range (Component)     114 dB
DAC Dynamic Range (Measured: A-wtd, 48 kHz)     105 dB
Signal-to-Noise (a-weighted)     -96 dB
Bit Depth     24-bit
Internally Supported Sample Rates     44.1, 48, 88.2, 96 kHz
Jitter     < 80 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation     > 60 dB (1 ns in => 1 ps out)
SD Recorder

Supported Media Format     FAT16 formatted SD™ card, FAT32 formatted SDHC™ card
Media Storage Capacity     SD card: 2 GB; SDHC card: 32 GB
Recording File Format     Stereo WAV
Playback File Formats     Stereo WAV, MP3 (96-320 kbs, 32 / 44.1 / 48 kHz)
Sampling Rate (WAV)     44.1 kHz
Bit Depth

Recording: 24-bit

Playback: 16- or 24-bit
Power/Environmental

Connector     IEC
Input Voltage Range     90 to 240 VAC
Recommended Ambient Operating Temperature     0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Physical

Height     3.5” (89 mm)
Width (Chassis only)     15” (381 mm)
Depth     15.6” (397 mm)
Weight     11.9 lbs (5.4 kg)

As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.

SD Logo is a trademark of SD-3C, LLC
Requisiti di sistema:

Mac

macOS® 10.11 or higher (64-bit only)
Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)

Windows

Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel Core 2 Duo (Intel Core i3 or faster recommended)

Mac and Windows Systems

4 GB RAM (8 GB or more recommended)
30 GB hard-drive space (Studio One)
Internal or external 7200 RPM storage drive highly recommended
Monitor with 1366×768 resolution (high-dpi monitor recommended)
